Bambu Lab P1P Screen
$42.00
Kindly note Bambu Lab spare parts are exclusively available for X1C and P1S models acquired through authorized resellers. When completing your purchase, kindly ensure you provide the Bambu Lab serial number at checkout.

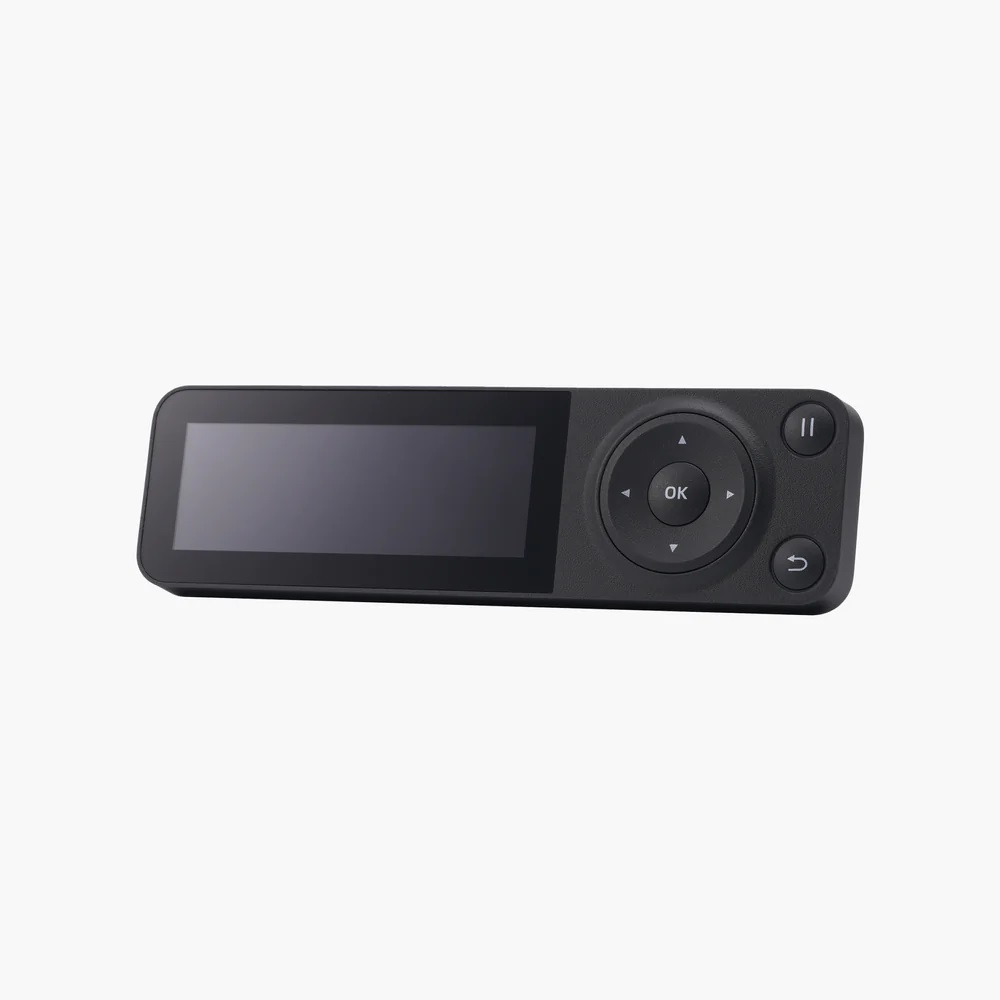

The screen module with LCD screen and physical control buttons can be used to display printing parameters and control the printer.
Choose Quantity
Product Details
Compatibility:
- P1 Series Exclusive
Installation:
- Learn more about the replacement of the P1 Series Screen on Bambu Lab Wiki.
Product Specification:
- LCD type: FSTN/NEGATIVE/TRANSMISSIVE
- Module power consumption: 2.45mW@3.3V
- Recommended viewing direction: 12:00
- Backlight type: LED
- Viewing area (WH): 67.623.19
- Active area (WH): 66.622.19
- Operation temperature: -20 ~ 70℃
- Humidity: 90%RH max @(60℃ max)
- Number of Dots: 192*64
- Contrast ratio: Cr="50" Typical
- Luminance uniformity: 70%min
- Surface Luminance: 80 cd/m^2 Typical
- Viewing angle range: 35deg Typical
- Color: Grey
- Package size: 145x100x55 mm
- Package weight: 900 g
