Bambu Lab Cutting Module Kit - H2 Series/A2L

The Cutting Module Kit adds blade cutting and pen drawing to your Bambu Lab H2 series or A2L printer. Cut vinyl, stickers, cardstock, kraft paper, heat transfer vinyl and thin PU leatherette (up to 0.5 mm) with the blade module, then swap in the pen holder to draw or write with the included markers. Everything for cutting and drawing is in the box: the module, the cutting platform with both mats, 2 fine point blades, the pen holder with 2 markers and a weeding tool tip.

Key Features

• Precise Blade Cutting - Fine point blade for decals, labels, greeting cards and iron-on designs.
• Pen Drawing - Draw, write or sketch with the included oil-based markers.
• Two Mats Included - A StrongGrip mat for PU leatherette and a LightGrip mat for paper and vinyl.
• Cut Without Heat - Vinyl, sticker paper and heat transfer vinyl, which a laser should not touch.
• One Machine, Three Jobs - Print, cut and draw on the same printer. Cutting and drawing jobs are set up in Bambu Suite (Windows or Mac, Bambu account).

Specifications

• Compatible Printers - Bambu Lab H2D, H2D Pro, H2S, H2C and A2L (A2L: firmware 01.01.00.00 or later, Bambu Suite 1.3 or later, Bambu Handy 3.21 or later)
• Cutting Materials - Cardstock, kraft paper, vinyl, sticker paper, heat transfer vinyl, thin PU leatherette
• Max Material Thickness - 0.5 mm
• Cutting Area - 300 x 285 mm (H2D, H2D Pro, H2C), 297.5 x 300 mm (H2S), 300 x 300 mm (A2L)
• Drawing Area - 300 x 255 mm
• Blade - 45-degree x 0.35 mm fine point blade (2 included), pressure 50-600 gf
• Pen - Holder for 10.5-12.5 mm pens, oil-based markers (red and black) included

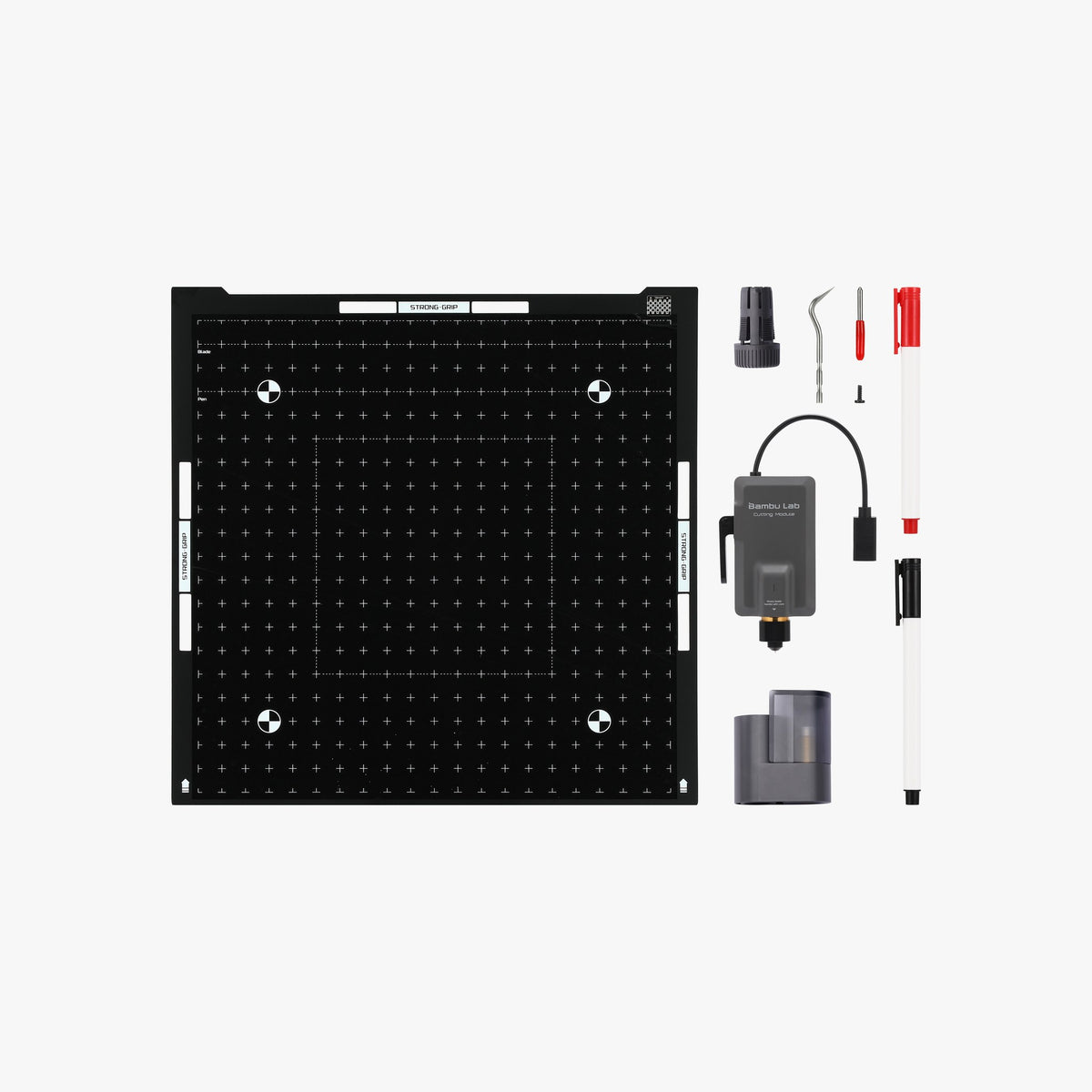

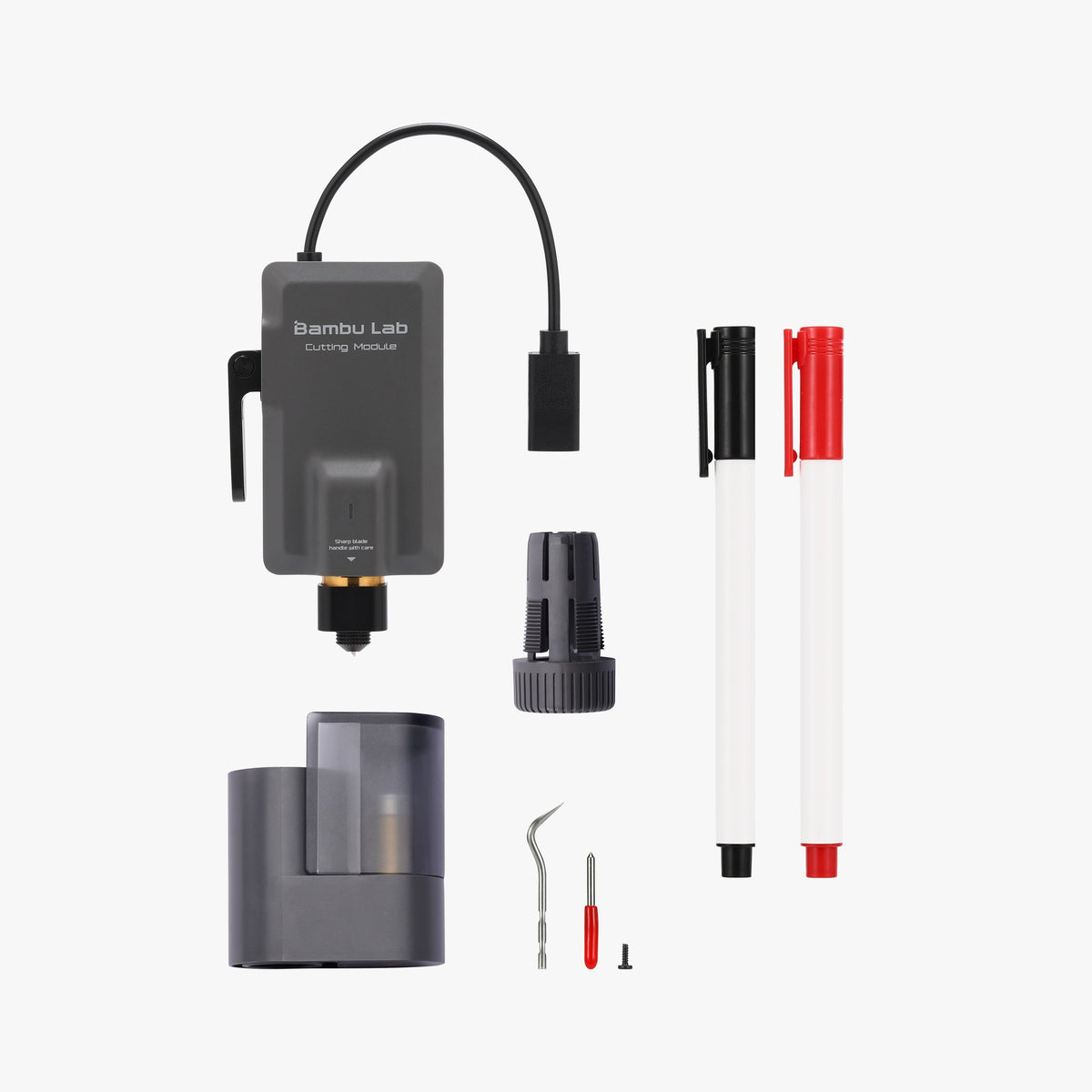

What's in the Box

• Cutting Module

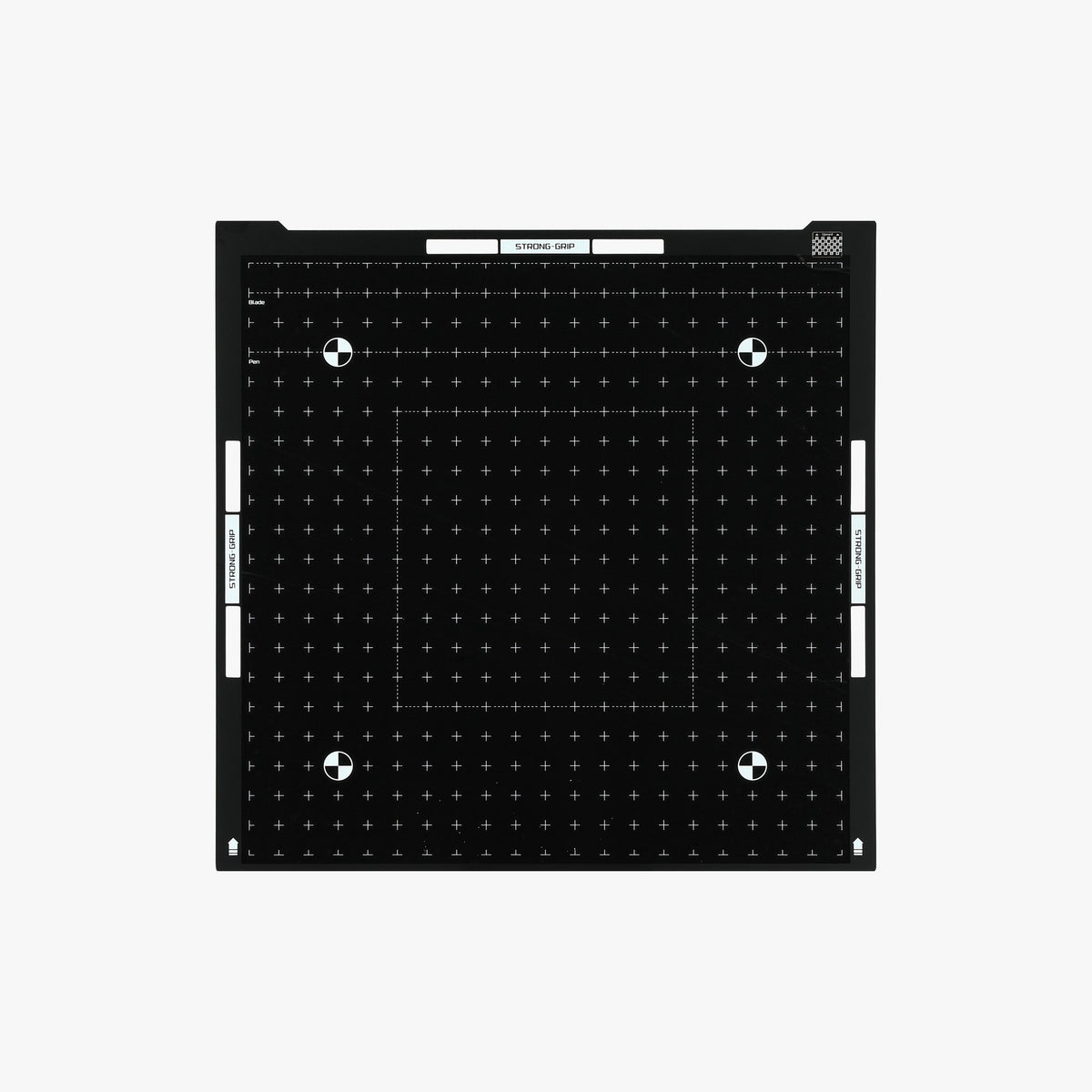

• Cutting Platform with StrongGrip and LightGrip cutting mats attached
• Fine Point Blade x2
• Weeding Tool tip (print the handle from MakerWorld)
• Pen Holder
• Oil-based Marker, red and black
• BT2.6-8 Screw x3

Good to Know

• No Laser Needed - The Laser Upgrade Kit is not required for cutting or drawing.
• BirdsEye Camera - Not included (it comes with the Laser Upgrade Kit). Cutting is just as accurate without it; only photo positioning needs the camera.
• Print Then Cut - Print stickers on your own inkjet or laser printer (a regular paper printer), then the module cuts the outline. A2L needs firmware 01.01.01.00 and Bambu Suite 1.4 or later.
• Limits - Up to 0.5 mm thick; not for wood, acrylic, felt or cloth fabric.
