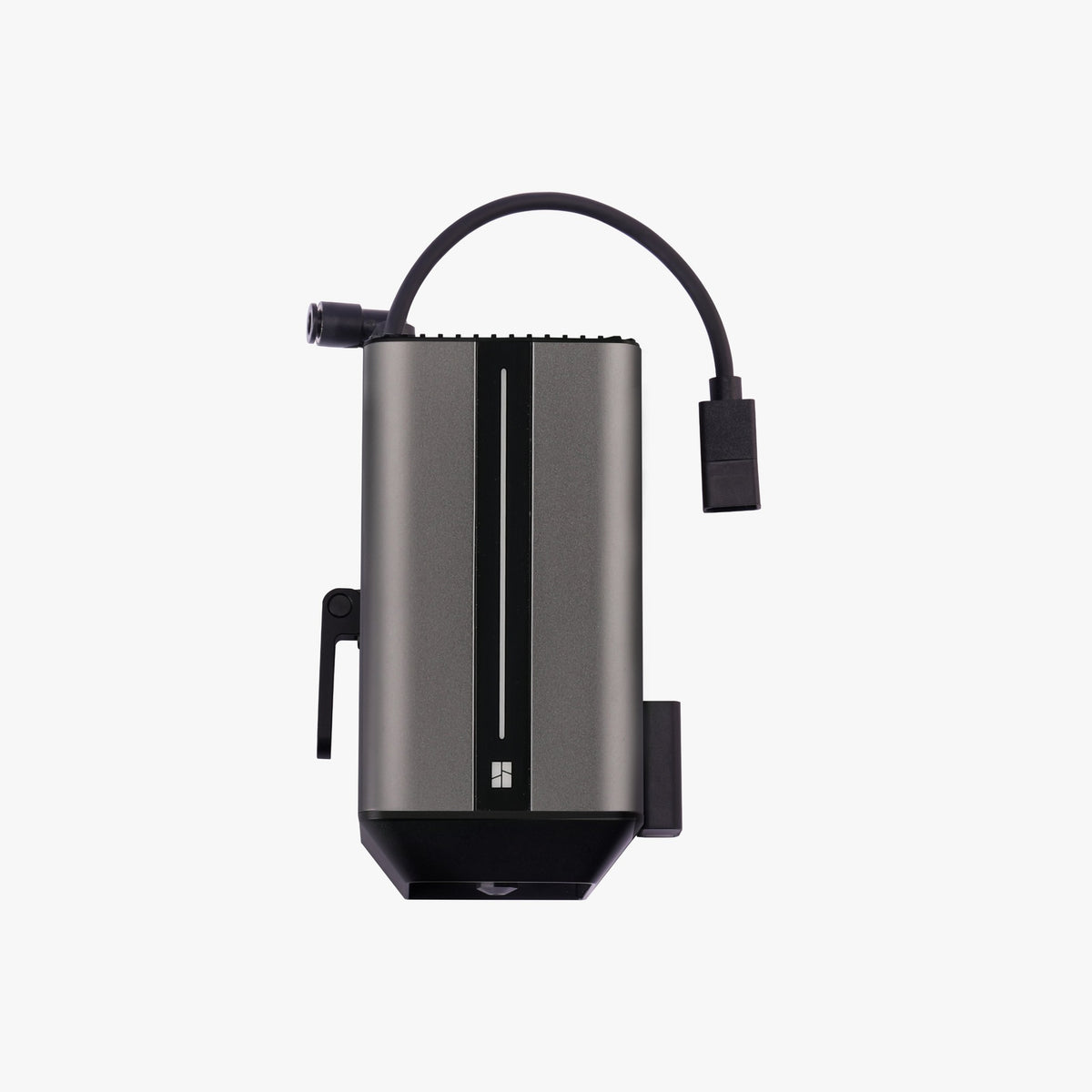

Bambu Lab 40W Laser Module - H2D/H2C

The 40W Laser Module is the power upgrade for a laser-ready Bambu Lab H2D or H2C, with 40 W of laser power, four times the 10W module in the Laser Upgrade Kit. It cuts basswood plywood up to 15 mm (up to 10 mm in a single pass) and engraves at up to 1000 mm/s. It mounts in place of the 10W module and uses the same safety windows, platform, air assist and ventilation.

Key Features

• 40W 455 nm Blue Laser - Cuts basswood plywood up to 15 mm, versus about 5 mm with the 10W module.
• 1000 mm/s Engraving - Two and a half times the engraving speed of the 10W, for production runs and large fills.
• Same Materials, More Depth - Cut plywood, basswood, bamboo, cork, dark acrylic and PU leatherette; engrave stone and ceramic; mark metal (no metal cutting).
• Quick-Release Mount - Swap between the 10W and 40W modules; run the laser setup again on the printer after each change.
• Contactless 3D Mesh, Air Assist and Flame Sensor - All the safety and precision features of the H2 laser system carry over.

Specifications

• Laser Type - Semiconductor laser, 455 nm blue light
• Height Measuring Laser - 850 nm infrared
• Laser Power - 40 W
• Laser Spot - 0.14 x 0.2 mm
• Max Engraving Speed - 1000 mm/s
• Engraving Area - 310 x 250 mm, max processing height 265 mm
• Max Cut, Basswood Plywood - 15 mm (up to 10 mm in a single pass)
• Supported Materials - Cut: wood, bamboo, cork, PU leatherette, dark opaque acrylic. Engrave only: stone, ceramic, opaque glass, metal
• Laser Safety Class - Module Class 4, complete printer Class 1
• Compatible Printers - Bambu Lab H2D and H2C, laser version

What's in the Box

• 40W Laser Module
• 1 spare laser lens
• User manual

Before You Buy

• Requires a Laser-Ready Printer - An H2D or H2C with the Laser Upgrade Kit installed, or a factory H2D/H2C Laser Full Combo. It cannot be used on a standard printer; start with the Laser Upgrade Kit - H2D/H2C.
• Not for the H2S - H2S owners use the 10W module that comes in the H2S kit.
• Stay With the Machine - On long, high-power cuts the printer asks you to tap Check on the screen at intervals to confirm someone is present. Never leave a laser job unattended.
• Software - Laser jobs are prepared in Bambu Suite, Bambu Lab's 2D laser software, not in Bambu Studio.
