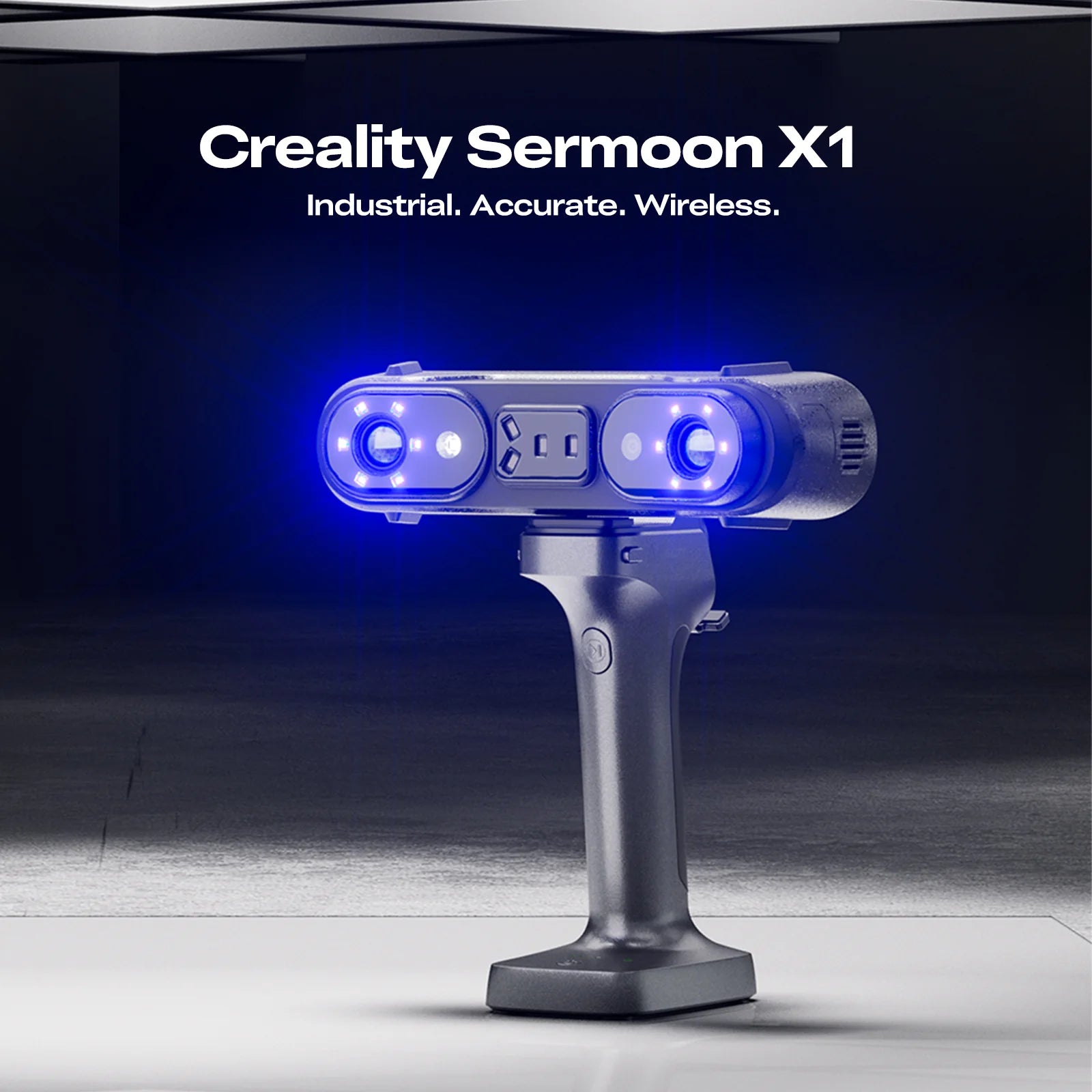

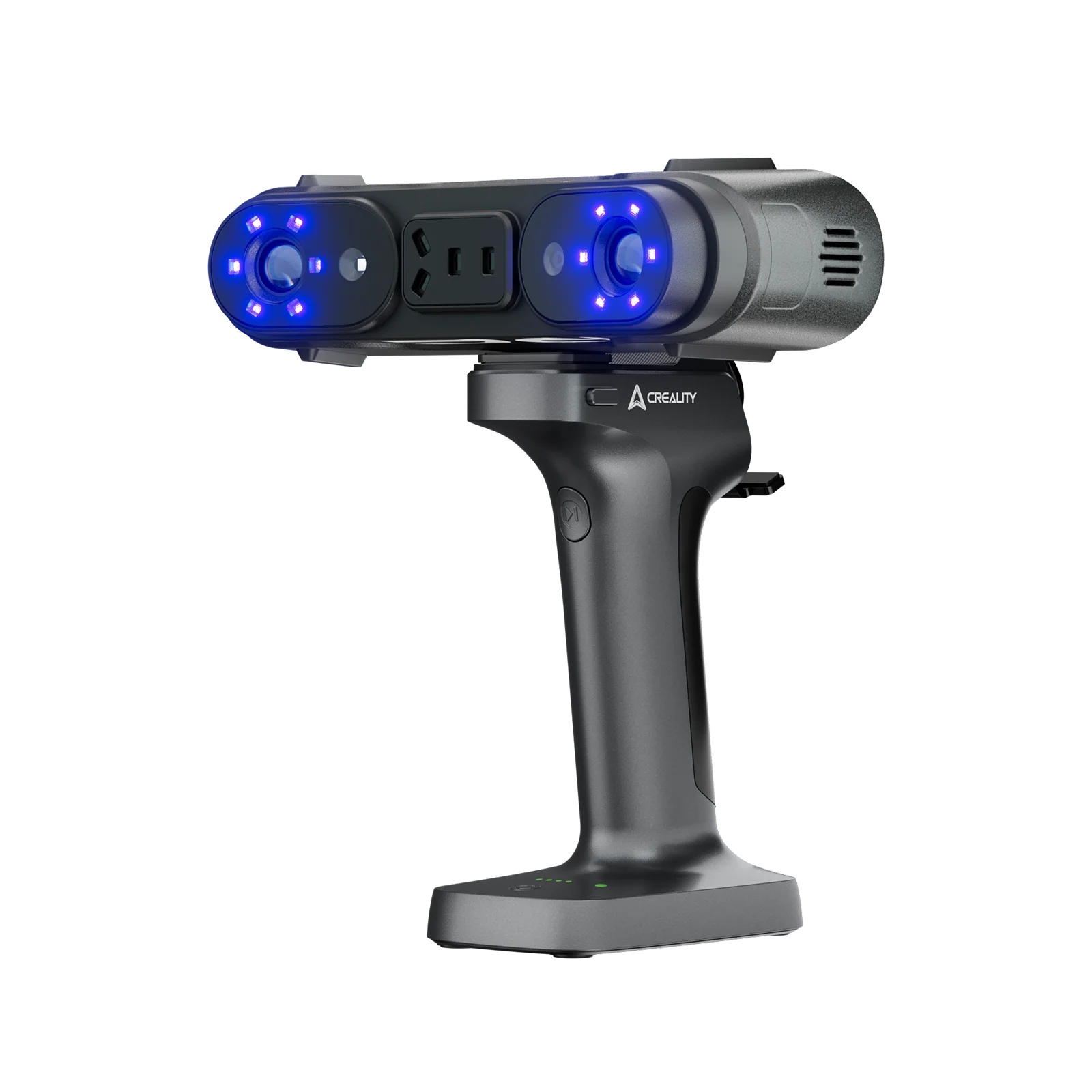

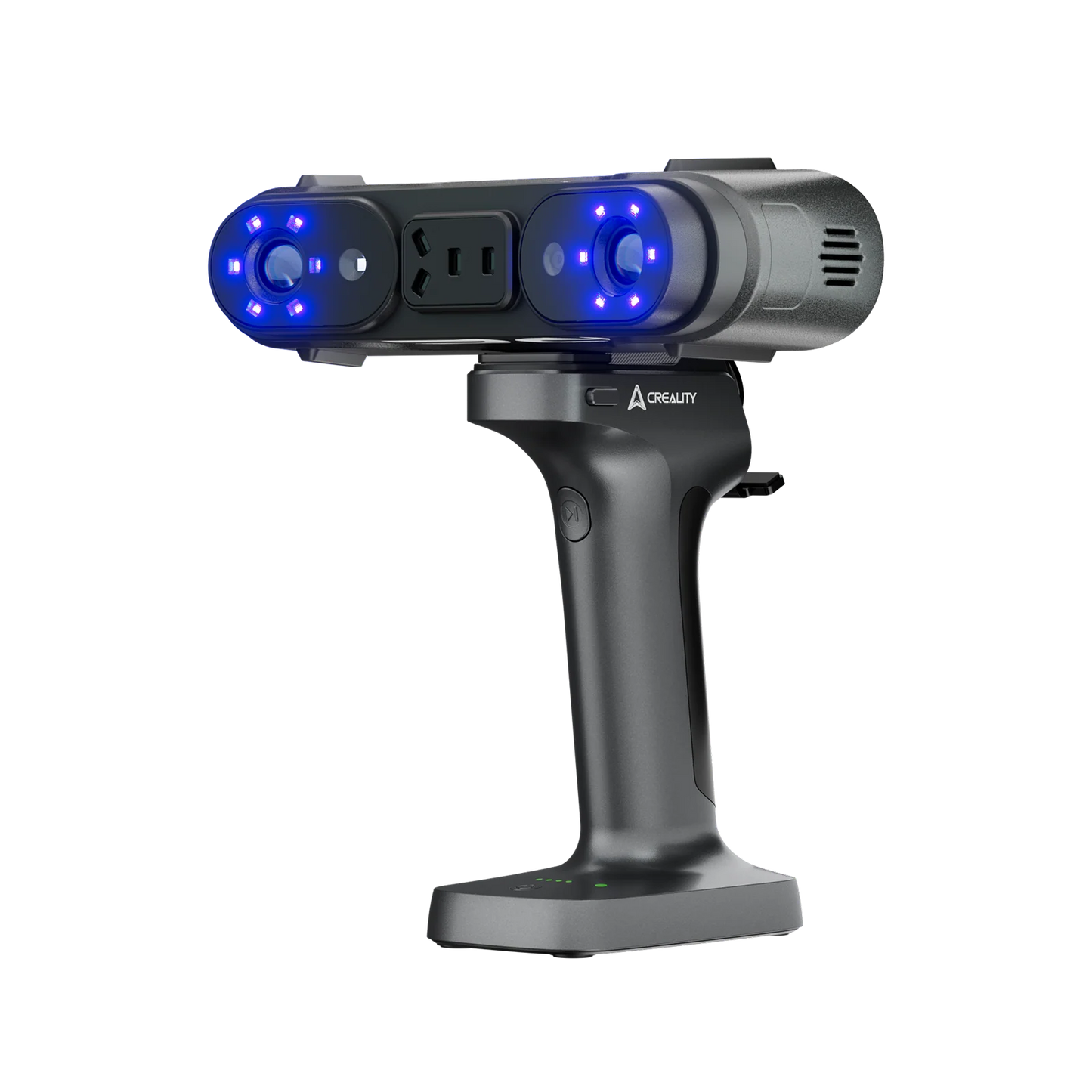

Creality Sermoon X1 3D Scanner

The Creality Sermoon X1 is an industrial-grade professional 3D scanner combining a hybrid 1 + 7 + 34 blue-laser array with NIR structured light for unmatched precision and speed. Built with a CNC-machined all-metal unibody for fortress-like stability, it's trusted by leading manufacturers, architectural firms, and university labs worldwide.

Key Features

• Multi-Light Scanning System: 1 + 7 + 34 Blue Laser Lines + NIR Structured Light
• Industrial Volumetric Accuracy: 0.02 mm + 0.03 mm/m (with Scale Bar) | 0.02 mm + 0.04 mm/m
• Scanning Speed: Up to 90 FPS
• Scanning Range: 5 mm³ to 4000 mm³
• Built-in Photogrammetry with 2× Scale Bars for automatic dimensional correction
• Single-Line Deep Hole Mastery: Up to 6:1 depth-to-diameter ratio
• Large FOV: Line laser up to 650×531 mm | Infrared up to 1300×935 mm
• Wireless Scanning: Wi-Fi 6, cable-free operation
• Long Battery Life: 4+ hours, 5000 mAh, Type-C charging
• Spray-free scanning of black and metallic surfaces
• Full-color texture via Qualcomm ISP + 2MP RGB camera
• 17.36% fewer markers per unit area - faster setup, larger coverage
• Outdoor capable: single/7-line laser <50k lux | 34 cross lines <100k lux

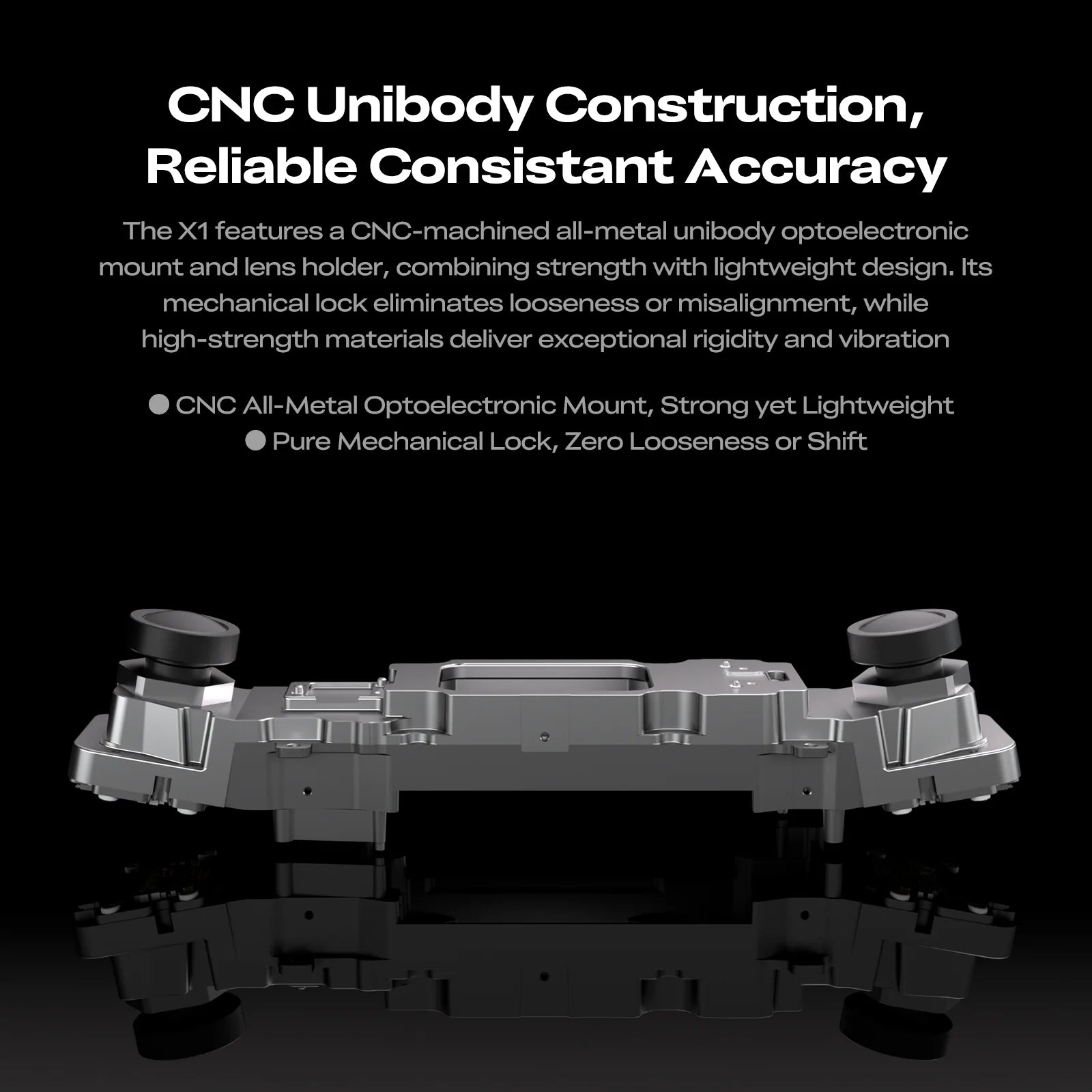

Industrial-Grade Construction

• CNC-machined all-metal unibody optoelectronic mount
• Pure mechanical lock - zero looseness or shift
• AI-driven temperature compensation algorithm
• Ergonomic grip with safety strap

Scanning Modes

• 1 Blue Laser Line: Deep holes and hard-to-reach areas (6:1 ratio)
• 7 Parallel Blue Laser Lines: Swift detail capture of intricate features
• 34 Blue Laser Lines: Efficient large-part scanning
• NIR Structured Light: Marker-free scanning of medium-large objects

Software & Workflow

CrealityScan 4.0 - AI-powered professional scanning software with one-click model processing, step-by-step tutorials, and intuitive editing tools. Direct integration with QuickSurface, Geomagic Design X, and major CAD/CAM/3D-printing platforms.

Applications

Engineering, restoration, inspection, reverse engineering, automotive, aerospace, education, archaeology, design and quality control.

What's in the Box

• Sermoon X1 3D Scanner
• Scale Bars (2×)
• 5000 mAh Battery
• USB-C Cable
• Power Adapter
• Calibration Board
• Carrying Case
